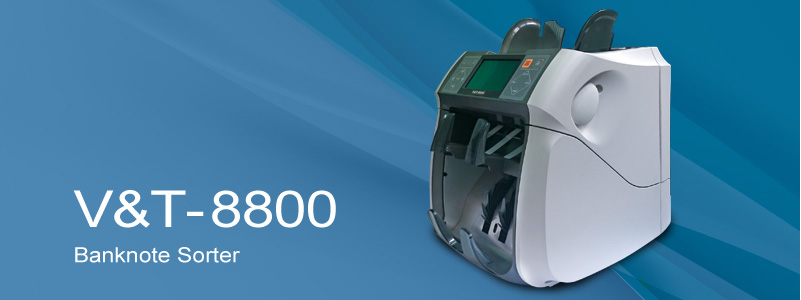

V&T-8800
Banknote Sorter
Functions
¡½ Value counting.¡½ Denomination sorting.
¡½ Orientation sorting.
¡½ Emission sorting.
¡½ Fitness sorting.
Detect unfit notes including stains, holes, tear, damage, tape notes...etc.
¡½ Employs a unique CIS image scanning identification system and allows "banknote 4-orientations" function for fast identification of graphic marks.
¡½ Easy approach for approved USB or Micro SD card to store the serial number and data.
¡½ High-performance motor enables optimal and stable rotational speed at the highest of 1100 notes per minute for the processing.
¡½ Can be equipped with a small external thermal printer or be connected to PC.
¡½ Easy to remove the jam banknote.
¡½ Easy to upgrade.
¡½ Big capacity of 500 banknotes hopper and 150 banknotes reject pocket.
Product Specification
| Simple Counting | 1200 notes / min |
| Denomination Counting | 1100 notes / min |
| Serial number Counting | 1100 notes / min |
| Fitness Counting | 900 notes / min |
| Applicable banknote size |
Length 85 - 180 mm Width 50 - 85 mm |
| Hopper capacity | 500 notes |
| Stacker capacity | 200 notes |
| Reject capacity | 150 notes |
| Dimensions | 300(L) x 330(W) x 310(H) mm |
| Power supply | AC 100V ~ 230V, 50 / 60HZ |
| Interface | Dual RS-232, USB, LAN, Micro SD |
| Net weight | 11 kg |
